Specifications

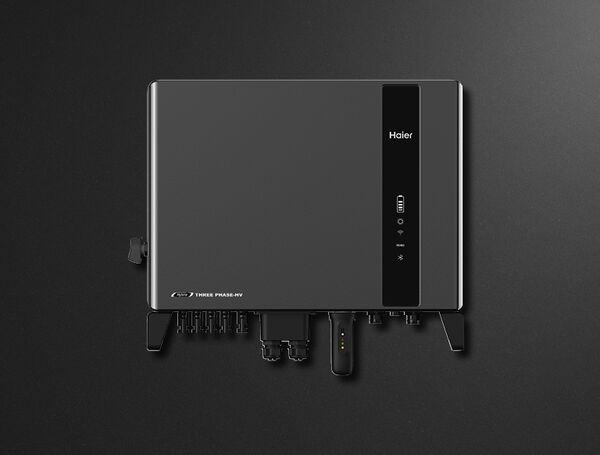

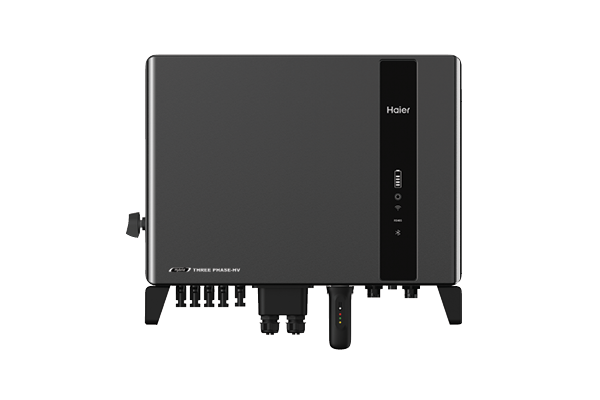

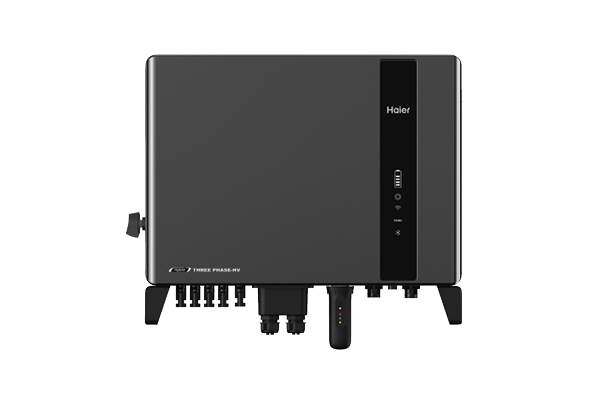

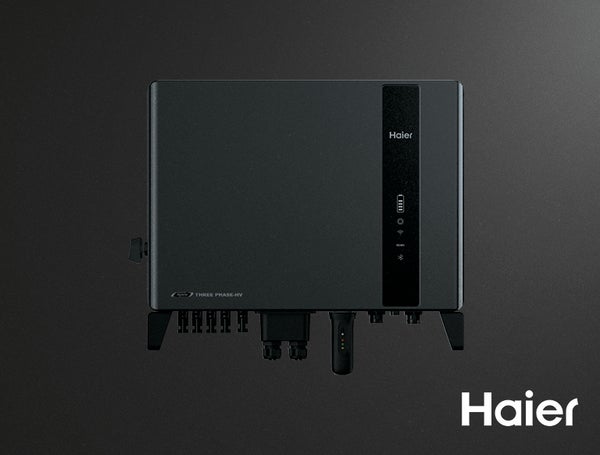

Haier Hybrid PV Inverter, Three-Phase, 5kW
HH3P-5KA1-HU
Capacity
Total capacity: 5 KW
Features
Display: App
Finish: Dark grey
Protection rating: IP66
Power requirements
MPPT number: 3
Max. discharge current: 25A
Max. input current: 16A
Nominal voltage: 600V
Rated output power: 5 KW
Recommended max. PV power: 8kW
Product dimensions
Depth: 210mm
Height: 500mm
Product weight: 27.58kg
Width: 600mm
Capacity
Total capacity: 5 KW
Features
Display: App
Finish: Dark grey
Protection rating: IP66
Power requirements
MPPT number: 3
Max. discharge current: 25A
Max. input current: 16A
Nominal voltage: 600V
Rated output power: 5 KW
Recommended max. PV power: 8kW
Product dimensions
Depth: 210mm
Height: 500mm
Product weight: 27.58kg
Width: 600mm
Warranty
Product warranty: 5 years
Download resources
General
-
Product Brochure
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Data Sheet
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Installation & User Guide
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
2D-DWG
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
2D-DXF
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Warranty Terms and Conditions
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
Haier Hybrid PV Inverter, Three-Phase, 6KW
HH3P-6KA1-HU
Capacity
Total capacity: 6 KW
Features
Display: App
Finish: Dark grey
Protection rating: IP66
Power requirements
MPPT number: 3
Max. discharge current: 25A
Max. input current: 16A
Nominal voltage: 600V
Rated output power: 6 KW
Recommended max. PV power: 9.6kW
Product dimensions
Depth: 210mm
Height: 500mm
Product weight: 27.58kg
Width: 600mm
Capacity
Total capacity: 6 KW
Features
Display: App
Finish: Dark grey
Protection rating: IP66
Power requirements
MPPT number: 3
Max. discharge current: 25A
Max. input current: 16A
Nominal voltage: 600V
Rated output power: 6 KW
Recommended max. PV power: 9.6kW
Product dimensions
Depth: 210mm
Height: 500mm
Product weight: 27.58kg
Width: 600mm
Warranty
Product warranty: 5 years
Download resources
General
-
Product Brochure
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Data Sheet
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Installation & User Guide
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
2D-DWG
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
2D-DXF
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Warranty Terms and Conditions
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
Haier Hybrid PV Inverter, Three-Phase, 8KW
HH3P-8KA10-HU
Capacity
Total capacity: 8 KW
Features
Display: App
Finish: Dark grey
Protection rating: IP66
Power requirements
MPPT number: 4
Max. discharge current: 50A
Max. input current: 16A
Nominal voltage: 600V
Rated output power: 8 KW
Recommended max. PV power: 12.8kW
Product dimensions
Depth: 230mm
Height: 500mm
Product weight: 30.18kg
Width: 600mm
Capacity
Total capacity: 8 KW
Features
Display: App
Finish: Dark grey
Protection rating: IP66
Power requirements
MPPT number: 4
Max. discharge current: 50A
Max. input current: 16A
Nominal voltage: 600V
Rated output power: 8 KW
Recommended max. PV power: 12.8kW
Product dimensions
Depth: 230mm
Height: 500mm
Product weight: 30.18kg
Width: 600mm
Warranty
Product warranty: 5 years
Download resources
General
-
Product Brochure
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Data Sheet
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Installation & User Guide
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
2D-DWG
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
2D-DXF
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Warranty Terms and Conditions
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
Haier Hybrid PV Inverter, Three-Phase, 10KW
HH3P-10KA1-HU
Capacity
Total capacity: 10 KW
Features
Display: App
Finish: Dark grey
Protection rating: IP66
Power requirements
MPPT number: 4
Max. discharge current: 50A
Max. input current: 16A
Nominal voltage: 600V
Rated output power: 10 KW
Recommended max. PV power: 16kW
Product dimensions
Depth: 230mm
Height: 500mm
Product weight: 30.18kg
Width: 600mm
Capacity
Total capacity: 10 KW
Features
Display: App
Finish: Dark grey
Protection rating: IP66
Power requirements
MPPT number: 4
Max. discharge current: 50A
Max. input current: 16A
Nominal voltage: 600V
Rated output power: 10 KW
Recommended max. PV power: 16kW
Product dimensions
Depth: 230mm
Height: 500mm
Product weight: 30.18kg
Width: 600mm
Warranty
Product warranty: 5 years
Download resources
General
-
Product Brochure
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Data Sheet
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Installation & User Guide
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
2D-DWG
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
2D-DXF
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
-
Warranty Terms and Conditions
Three-Phase, 5-10kW, GeneralFiles-HaierHVACNZ
