Product Set
Outdoor Unit
Features
HEAT + COOL

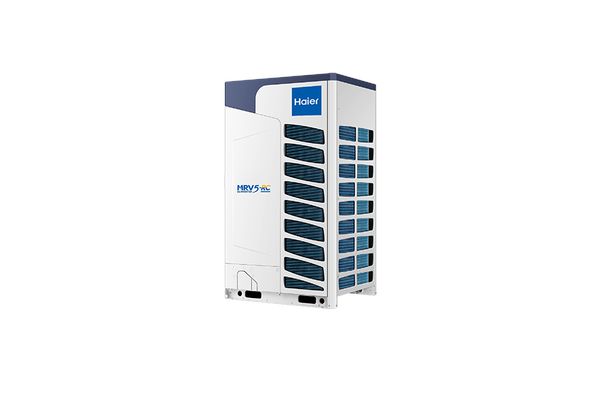

Haier’s heat recovery air conditioning outdoor unit and valve box offers simultaneous cooling and heating in one system.
COMMERCIAL SCALE
The MRV-5-RC has a small physical footprint. This allows for optimal space when combining multiple outdoor units to provide increased heating and cooling capacity of up to 224kW.
64 INDOOR UNITS
Connect up to 64 indoor units of varying capacity and style from wall mounts, slim duct, high static duct, compact cassette’s or large cassette’s.
HEAT PUMP
The MRV-5-RC outdoor unit is universal and may be designed in a two pipe connection, without valve box, for reverse cycle system, cooling or heating.
Technologies
Central Controller
For personalised control of the whole system, a wall-mounted controller lets you manage individual indoor units, groups or zones from a single point.
Heat Recovery
The MRV-5-RC outdoor unit and three-pipe valve box can heat and cool simultaneously using heat recovery. In a three-pipe system, heat absorbed from a cooling indoor unit can be recovered and used by another indoor unit for heating, and vice versa.
DC-Inverter Technology
With full DC-inverter technology and a new four-way heat exchanger, MRV-5-RC is designed to heat and cool large spaces efficiently.
Specifications

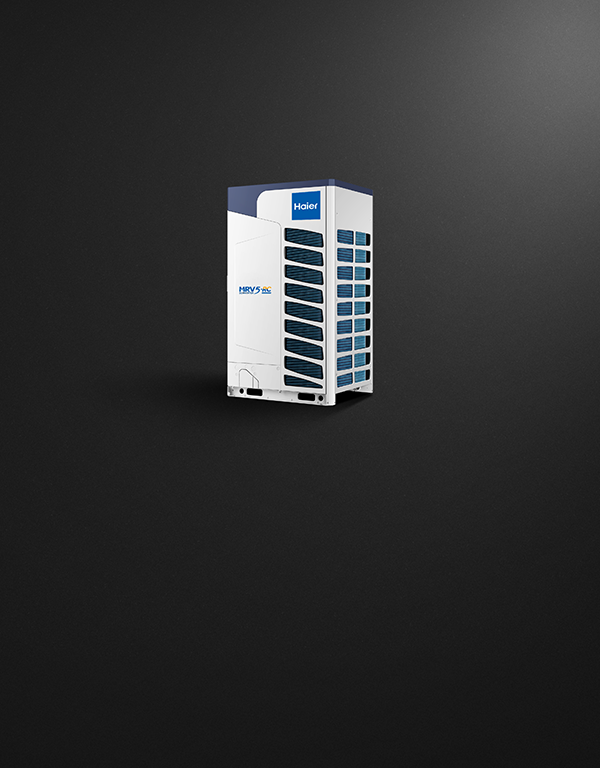

MRV 5-RC Heat Recovery, 22.4kW
AV08IMAURA
Capacity
Cooling capacity (kW): 22.4kW
Heating capacity (kW): 25kW
Consumption
COP: 4.33
EER: 3.96
HSPF-RES (Hot/Average/Cold): 3.858/3.573/3.105
HSPFCOM (Hot/Average/Cold): 3.84/3.651/3.292
Star-Cool (Hot/Average/Cold): 2.5/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.0/2.0/1.5
TCSPF-COM (Hot/Average/Cold): 4.521/4.433/4.465
TCSPF-RES (Hot/Average/Cold): 4.222/3.733/3.725
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 267kg
Width: 980mm
Warranty
Parts and labour: 2 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 22.4kW
Heating capacity (kW): 25kW
Consumption
COP: 4.33
EER: 3.96
HSPF-RES (Hot/Average/Cold): 3.858/3.573/3.105
HSPFCOM (Hot/Average/Cold): 3.84/3.651/3.292
Star-Cool (Hot/Average/Cold): 2.5/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.0/2.0/1.5
TCSPF-COM (Hot/Average/Cold): 4.521/4.433/4.465
TCSPF-RES (Hot/Average/Cold): 4.222/3.733/3.725
Features
Blue fin coils:
Compressor quantity: 1
Compressor type: DC INV. SCROLL
DRED (Demand Response) ready:
Electronic expansion device:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 11.5kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 15
Pipe size gas: 19.1mm
Pipe size liquid: 9.5mm
Performance
DC inverter:
Outdoor sound power SWL: 83dBA
R410a refrigerant:
Working temperature cooling: -5°C ~ +50°C
Working temperature heating: -23°C ~ +21°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 267kg
Width: 980mm
Warranty
Parts and labour: 2 years
Download resources
General
-
Service & Warranty Booklet
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Outdoor Unit
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
MRV 5-RC Heat Recovery, 28kW
AV10IMAURA
Capacity
Cooling capacity (kW): 28kW
Heating capacity (kW): 31.5kW
Consumption
COP: 3.96
EER: 3.75
HSPF-RES (Hot/Average/Cold): 3.696/2.822/2.501
HSPFCOM (Hot/Average/Cold): 3.781/3.226/2.889
Star-Cool (Hot/Average/Cold): 2.0/1.0/1.0
Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0
TCSPF-COM (Hot/Average/Cold): 4.434/4.374/4.597
TCSPF-RES (Hot/Average/Cold): 4.131/3.662/3.673
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 267kg
Width: 980mm
Warranty
Parts and labour: 2 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 28kW
Heating capacity (kW): 31.5kW
Consumption
COP: 3.96
EER: 3.75
HSPF-RES (Hot/Average/Cold): 3.696/2.822/2.501
HSPFCOM (Hot/Average/Cold): 3.781/3.226/2.889
Star-Cool (Hot/Average/Cold): 2.0/1.0/1.0
Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0
TCSPF-COM (Hot/Average/Cold): 4.434/4.374/4.597
TCSPF-RES (Hot/Average/Cold): 4.131/3.662/3.673
Features
Blue fin coils:
Compressor quantity: 1
Compressor type: DC INV. SCROLL
DRED (Demand Response) ready:
Electronic expansion device:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 12.5kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 17
Pipe size gas: 22.2mm
Pipe size liquid: 9.5mm
Performance
DC inverter:
Outdoor sound power SWL: 84dBA
R410a refrigerant:
Working temperature cooling: -5°C ~ +50°C
Working temperature heating: -23°C ~ +21°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 267kg
Width: 980mm
Warranty
Parts and labour: 2 years
Download resources
General
-
Service & Warranty Booklet
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Outdoor Unit
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
MRV 5-RC Heat Recovery, 33.5kW
AV12IMAURA
Capacity
Cooling capacity (kW): 33.5kW
Heating capacity (kW): 35kW
Consumption
COP: 3.78
EER: 3.65
HSPF-RES (Hot/Average/Cold): 3.776/2.967/2.527
HSPFCOM (Hot/Average/Cold): 3.77/3.323/2.778
Star-Cool (Hot/Average/Cold): 2.5/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.0/1.0/1.0
TCSPF-COM (Hot/Average/Cold): 4.429/4.40/4.64
TCSPF-RES (Hot/Average/Cold): 4.127/3.694/3.731
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 267kg
Width: 980mm
Warranty
Parts and labour: 2 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 33.5kW
Heating capacity (kW): 35kW
Consumption
COP: 3.78
EER: 3.65
HSPF-RES (Hot/Average/Cold): 3.776/2.967/2.527
HSPFCOM (Hot/Average/Cold): 3.77/3.323/2.778
Star-Cool (Hot/Average/Cold): 2.5/2.0/2.0
Star-Heat (Hot/Average/Cold): 2.0/1.0/1.0
TCSPF-COM (Hot/Average/Cold): 4.429/4.40/4.64
TCSPF-RES (Hot/Average/Cold): 4.127/3.694/3.731
Features
Blue fin coils:
Compressor quantity: 1
Compressor type: DC INV. SCROLL
DRED (Demand Response) ready:
Electronic expansion device:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 14kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 20
Pipe size gas: 25.4mm
Pipe size liquid: 12.7mm
Performance
DC inverter:
Outdoor sound power SWL: 85dBA
R410a refrigerant:
Working temperature cooling: -5°C ~ +50°C
Working temperature heating: -23°C ~ +21°C
Power requirements
Power phase: Three phase
Power supply: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 267kg
Width: 980mm
Warranty
Parts and labour: 2 years
Download resources
General
-
Service & Warranty Booklet
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Outdoor Unit
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
MRV 5-RC Heat Recovery, 40kW
AV14IMAURA
Capacity
Cooling capacity (kW): 40kW
Heating capacity (kW): 45kW
Consumption
COP: 3.83
EER: 3.57
HSPF-RES (Hot/Average/Cold): 3.495/3.009/2.692
HSPFCOM (Hot/Average/Cold): 3.514/3.223/2.936
Star-Cool (Hot/Average/Cold): 1.5/1.5/1.0
Star-Heat (Hot/Average/Cold): 2.0/1.5/1.5
TCSPF-COM (Hot/Average/Cold): 3.813/3.74/3.919
TCSPF-RES (Hot/Average/Cold): 3.621/3.342/3.359
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 385kg
Width: 1410mm
Warranty
Parts and labour: 2 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 40kW
Heating capacity (kW): 45kW
Consumption
COP: 3.83
EER: 3.57
HSPF-RES (Hot/Average/Cold): 3.495/3.009/2.692
HSPFCOM (Hot/Average/Cold): 3.514/3.223/2.936
Star-Cool (Hot/Average/Cold): 1.5/1.5/1.0
Star-Heat (Hot/Average/Cold): 2.0/1.5/1.5
TCSPF-COM (Hot/Average/Cold): 3.813/3.74/3.919
TCSPF-RES (Hot/Average/Cold): 3.621/3.342/3.359
Features
Blue fin coils:
Compressor quantity: 2
Compressor type: DC INV. SCROLL
DRED (Demand Response) ready:
Electronic expansion device:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 17.5kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 24
Pipe size gas: 25.4mm
Pipe size liquid: 12.7mm
Performance
DC inverter:
Outdoor sound power SWL: 88dBA
R410a refrigerant:
Working temperature cooling: -5°C ~ +50°C
Working temperature heating: -23°C ~ +21°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 385kg
Width: 1410mm
Warranty
Parts and labour: 2 years
Download resources
General
-
Service & Warranty Booklet
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Outdoor Unit
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
MRV 5-RC Heat Recovery, 45kW
AV16IMAURA
Capacity
Cooling capacity (kW): 45kW
Heating capacity (kW): 50kW
Consumption
COP: 3.77
EER: 3.53
HSPF-RES (Hot/Average/Cold): 3.899/3.355/2.838
HSPFCOM (Hot/Average/Cold): 3.895/3.582/3.047
Star-Cool (Hot/Average/Cold): 2.0/1.5/1.0
Star-Heat (Hot/Average/Cold): 2.0/1.5/1.5
TCSPF-COM (Hot/Average/Cold): 3.922/3.876/4.074
TCSPF-RES (Hot/Average/Cold): 3.714/3.438/3.473
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 385kg
Width: 1410mm
Warranty
Parts and labour: 2 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 45kW
Heating capacity (kW): 50kW
Consumption
COP: 3.77
EER: 3.53
HSPF-RES (Hot/Average/Cold): 3.899/3.355/2.838
HSPFCOM (Hot/Average/Cold): 3.895/3.582/3.047
Star-Cool (Hot/Average/Cold): 2.0/1.5/1.0
Star-Heat (Hot/Average/Cold): 2.0/1.5/1.5
TCSPF-COM (Hot/Average/Cold): 3.922/3.876/4.074
TCSPF-RES (Hot/Average/Cold): 3.714/3.438/3.473
Features
Blue fin coils:
Compressor quantity: 2
Compressor type: DC INV. SCROLL
DRED (Demand Response) ready:
Electronic expansion device:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 17.5kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 27
Pipe size gas: 28.6mm
Pipe size liquid: 12.7mm
Performance
DC inverter:
Outdoor sound power SWL: 88dBA
R410a refrigerant:
Working temperature cooling: -5°C ~ +50°C
Working temperature heating: -23°C ~ +21°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 385kg
Width: 1410mm
Warranty
Parts and labour: 2 years
Download resources
General
-
Service & Warranty Booklet
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Outdoor Unit
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
MRV 5-RC Heat Recovery, 50.4kW
AV18IMAURA
Capacity
Cooling capacity (kW): 50kW
Heating capacity (kW): 56.5kW
Consumption
COP: 3.55
EER: 3.56
Star-Heat (Hot/Average/Cold): 2.0/2.0/2.0
TCSPF-COM (Hot/Average/Cold): 4.393/4.161/4.171
TCSPF-RES (Hot/Average/Cold): 3.93/3.638/3.701
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 385kg
Width: 1410mm
Warranty
Parts and labour: 2 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 50kW
Heating capacity (kW): 56.5kW
Consumption
COP: 3.55
EER: 3.56
Star-Heat (Hot/Average/Cold): 2.0/2.0/2.0
TCSPF-COM (Hot/Average/Cold): 4.393/4.161/4.171
TCSPF-RES (Hot/Average/Cold): 3.93/3.638/3.701
Features
Blue fin coils:
Compressor quantity: 2
Compressor type: DC INV. SCROLL
DRED (Demand Response) ready:
Electronic expansion device:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 17.5kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 30
Pipe size gas: 28.6mm
Pipe size liquid: 15.9mm
Performance
DC inverter:
Outdoor sound power SWL: 88dBA
R410a refrigerant:
Working temperature cooling: -5°C ~ +50°C
Working temperature heating: -23°C ~ +21°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 385kg
Width: 1410mm
Warranty
Parts and labour: 2 years
Download resources
General
-
Service & Warranty Booklet
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Outdoor Unit
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
MRV 5-RC Heat Recovery, 56kW
AV20IMAURA
Capacity
Cooling capacity (kW): 56kW
Heating capacity (kW): 58kW
Consumption
COP: 3.85
EER: 3.35
HSPF-RES (Hot/Average/Cold): 3.659/3.054/2.698
HSPFCOM (Hot/Average/Cold): 3.688/3.326/2.993
Star-Cool (Hot/Average/Cold): 2.0/1.5/1.0
Star-Heat (Hot/Average/Cold): 2.0/2.0/2.0
TCSPF-COM (Hot/Average/Cold): 4.001/4.014/4.248
TCSPF-RES (Hot/Average/Cold): 3.767/3.508/3.587
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 385kg
Width: 1410mm
Warranty
Parts and labour: 2 years
Accessories (included)
Central controller: Optional
SmartHQ WiFi control: Optional
Capacity
Cooling capacity (kW): 56kW
Heating capacity (kW): 58kW
Consumption
COP: 3.85
EER: 3.35
HSPF-RES (Hot/Average/Cold): 3.659/3.054/2.698
HSPFCOM (Hot/Average/Cold): 3.688/3.326/2.993
Star-Cool (Hot/Average/Cold): 2.0/1.5/1.0
Star-Heat (Hot/Average/Cold): 2.0/2.0/2.0
TCSPF-COM (Hot/Average/Cold): 4.001/4.014/4.248
TCSPF-RES (Hot/Average/Cold): 3.767/3.508/3.587
Features
Blue fin coils:
Compressor quantity: 2
Compressor type: DC INV. SCROLL
DRED (Demand Response) ready:
Electronic expansion device:
Inverter controlled compressor:
MEPS approved:
Motor type: DC motor
Refrigerant factory charge: 18.5kg
Self diagnostics:
Installation
Connectible indoor unit ratio: 50-130%
Maximum number indoor units: 33
Pipe size gas: 28.6mm
Pipe size liquid: 15.9mm
Performance
DC inverter:
Outdoor sound power SWL: 90dBA
R410a refrigerant:
Working temperature cooling: -5°C ~ +50°C
Working temperature heating: -23°C ~ +21°C
Power requirements
Power phase: Three phase
Supply frequency: 50Hz
Supply voltage: 400V
Product dimensions
Depth: 750mm
Height: 1690mm
Net weight: 385kg
Width: 1410mm
Warranty
Parts and labour: 2 years
Download resources
General
-
Service & Warranty Booklet
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Installation & User Guide - Outdoor Unit
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
-
Product Brochure
MRV-5-RC Heat Recovery Outdoor, GeneralFiles-HaierHVACNZ
