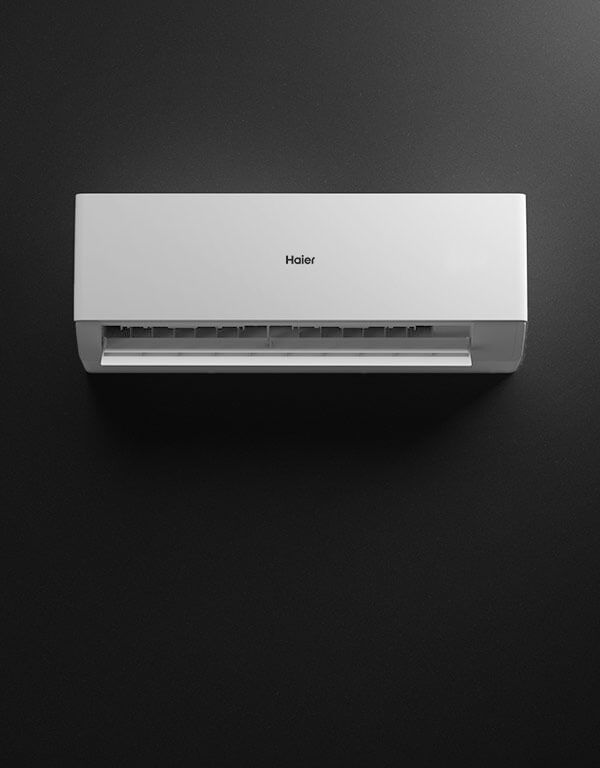

Quartz Plus (Heating and Cooling), hero

Quartz Plus (Heating and Cooling)

Wall Mounted Split System

Get a quote

Product Set

Outdoor Unit
Indoor Unit
Controller

Features

energy_savings_leaf

More Efficient Heating

Quartz Plus is our most efficient model in terms of heating performance, meeting the requirements of many rebate and energy efficiency schemes.

airwave

Even Airflow

Enjoy an even temperature throughout the room. 3D airflow directs air horizontally as well as vertically, for consistently spread heating and cooling.

mode_cool

Turbo Cooling

With the Turbo function the motor and fan work at a higher frequency, so you can enjoy a cool room within a much shorter time.

square_foot

Easy Installation

Designed for easy installation, the Quartz Plus comes with simple positioning specifications. The control board and motor are also easily accessible for fast maintenance.

Technologies

UV Protect

UV Protect

UV Protect helps to deliver cleaner air to your room using Health mode, with built-in LED UV Pro lights that help to kill airborne pathogens.*

*Independent testing on a 2.6kW model equivalent to AS25QCEHRA has found 91.47% elimination of the H3N2 virus in a 30m2 closed room and 92.78% of Staphylococcus aureus bacteria in a 10m3 closed room, for two hours on Health mode at the highest fan speed. Performance claims are specific to the tested model and equivalent kW models.

Coanda Plus Airflow

Coanda Plus Airflow

Coanda Plus airflow technology sends warm or cool air further, for maximum comfort throughout the room.

Self-Clean

Self-Clean

The Self-clean function freezes the indoor and outdoor coil with moisture in the air and flushes away dirt through melting, helping to ensure healthy airflow from your air conditioner.

Wi-Fi

Wi-Fi

We believe in integrating smart technology into the heart of every home. The SmartHQ™ app puts control in your hands and means you can control your air-conditioner from anywhere at anytime. Our products are also compatible with Google Home and Amazon Alexa.

Specifications

Quartz Plus Hi Wall, 2.5kW

AS25QCFHRA-SET

AS25QCFHRA-SET, hero
Capacity

Cooling capacity (kW): 2.5kW

Heating capacity (kW): 3.2kW

Consumption

COP: 4.64

EER: 0.51

Energy rating (cooling): 2.50

Energy rating (heating): 3.20

HSPF-RES (Hot/Average/Cold): 5.544/5.015/4.570

HSPFCOM (Hot/Average/Cold): 5.549/5.231/4833

Star-Cool (Hot/Average/Cold): 7.0/6.0/6.0

Star-Heat (Hot/Average/Cold): 4.0/3.5/3.0

TCSPF-COM (Hot/Average/Cold): 8.812/8.957/13.561

TCSPF-RES (Hot/Average/Cold): 8.606/7.643/7.731

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

AS25QCFHRA-SET
Quartz Plus Hi Wall, 2.5kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 2.5kW

Heating capacity (kW): 3.2kW

Consumption

COP: 4.64

EER: 0.51

Energy rating (cooling): 2.50

Energy rating (heating): 3.20

HSPF-RES (Hot/Average/Cold): 5.544/5.015/4.570

HSPFCOM (Hot/Average/Cold): 5.549/5.231/4833

Star-Cool (Hot/Average/Cold): 7.0/6.0/6.0

Star-Heat (Hot/Average/Cold): 4.0/3.5/3.0

TCSPF-COM (Hot/Average/Cold): 8.812/8.957/13.561

TCSPF-RES (Hot/Average/Cold): 8.606/7.643/7.731

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Self diagnostics:

Sleep mode:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS25QCFHRA

Indoor unit weight: 10kg

Outdoor unit model: 1U25MAFFRA

Outdoor unit weight: 30kg

Pipe length maximum: 15m

Pipe size gas: 9.52mm

Pipe size liquid: 6.35mm

Performance

Airflow: 195L/S

DC inverter:

Indoor sound pressure SPL: 39-19dBA

Outdoor sound power SWL: 51dBA

Outdoor sound pressure SPL: 61dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: -15°C to +24°C

Power requirements

Power phase: Single phase

Power supply: 1/220-240/50

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Plus Hi Wall, 3.5kW

AS35QCFHRA-SET

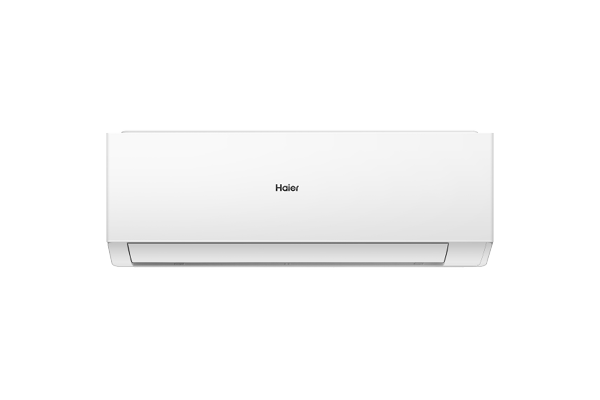

AS35QCFHRA-SET, hero
Capacity

Cooling capacity (kW): 3.5kW

Heating capacity (kW): 3.7kW

Consumption

COP: 4.64

EER: 0.51

Energy rating (cooling): 3.50

Energy rating (heating): 3.70

HSPF-RES (Hot/Average/Cold): 5.309/4.806/4.292

HSPFCOM (Hot/Average/Cold): 5.310/5.005/4.559

Star-Cool (Hot/Average/Cold): 5.0/4.5/4.5

Star-Heat (Hot/Average/Cold): 3.5/3.0/2.5

TCSPF-COM (Hot/Average/Cold): 8.076/8.772/11.843

TCSPF-RES (Hot/Average/Cold): 6.620/6.073/6.329

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

AS35QCFHRA-SET
Quartz Plus Hi Wall, 3.5kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 3.5kW

Heating capacity (kW): 3.7kW

Consumption

COP: 4.64

EER: 0.51

Energy rating (cooling): 3.50

Energy rating (heating): 3.70

HSPF-RES (Hot/Average/Cold): 5.309/4.806/4.292

HSPFCOM (Hot/Average/Cold): 5.310/5.005/4.559

Star-Cool (Hot/Average/Cold): 5.0/4.5/4.5

Star-Heat (Hot/Average/Cold): 3.5/3.0/2.5

TCSPF-COM (Hot/Average/Cold): 8.076/8.772/11.843

TCSPF-RES (Hot/Average/Cold): 6.620/6.073/6.329

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.02kg

Self diagnostics:

Sleep mode:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS35QCFHRA

Indoor unit weight: 10kg

Outdoor unit model: 1U35MAFFRA

Outdoor unit weight: 30kg

Pipe length maximum: 15m

Pipe size gas: 9.52mm

Pipe size liquid: 6.35mm

Performance

Airflow: 210L/S

DC inverter:

Indoor sound pressure SPL: 40-21dBA

Outdoor sound power SWL: 63dBA

Outdoor sound pressure SPL: 52dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: ‍-10°C to 46°C

Working temperature heating: ‍-15°C to 24°C

Power requirements

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 217mm

Indoor unit height: 307mm

Indoor unit width: 875mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Plus Hi Wall, 5.0kW

AS50QDFHRA-SET

AS50QDFHRA-SET, hero
Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 6kW

Consumption

COP: 4.05

EER: 4.31

Energy rating (cooling): 5.00

Energy rating (heating): 6.00

HSPF-RES (Hot/Average/Cold): 5.160/4.558/4.053

HSPFCOM (Hot/Average/Cold): 5.174/4.815/4.366

Star-Cool (Hot/Average/Cold): 4.5/4.0/4.0

Star-Heat (Hot/Average/Cold): 3.5/3.0/2.5

TCSPF-COM (Hot/Average/Cold): 6.741/7.082/7.959

TCSPF-RES (Hot/Average/Cold): 6.080/5.654/5.870

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 320mm

Indoor unit width: 970mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

AS50QDFHRA-SET
Quartz Plus Hi Wall, 5.0kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 6kW

Consumption

COP: 4.05

EER: 4.31

Energy rating (cooling): 5.00

Energy rating (heating): 6.00

HSPF-RES (Hot/Average/Cold): 5.160/4.558/4.053

HSPFCOM (Hot/Average/Cold): 5.174/4.815/4.366

Star-Cool (Hot/Average/Cold): 4.5/4.0/4.0

Star-Heat (Hot/Average/Cold): 3.5/3.0/2.5

TCSPF-COM (Hot/Average/Cold): 6.741/7.082/7.959

TCSPF-RES (Hot/Average/Cold): 6.080/5.654/5.870

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.02kg

Self diagnostics:

Sleep mode:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS50QDFHRA

Indoor unit weight: 11.6kg

Outdoor unit model: 1U50WAFFRA

Outdoor unit weight: 43.2kg

Pipe length maximum: 25m

Pipe size gas: 12.7mm

Pipe size liquid: 6.35mm

Performance

Airflow: 265L/S

DC inverter:

Indoor sound pressure SPL: 42-25dBA

Outdoor sound power SWL: 65dBA

Outdoor sound pressure SPL: 53dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Power supply: 1/220-240/50

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 320mm

Indoor unit width: 970mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Plus Hi Wall, 6kW

AS60QEEHRA-SET

AS60QEEHRA-SET, hero
Capacity

Cooling capacity (kW): 6kW

Heating capacity (kW): 7kW

Consumption

COP: 4.05 / 4.13

EER: 4.03 / 4.01

Energy rating (cooling): 6.00

Energy rating (heating): 7.00

HSPF-RES (Hot/Average/Cold): 4.664 / 4.228 / 3.712

HSPFCOM (Hot/Average/Cold): 4.662 / 4.394 / 3.961

Star-Cool (Hot/Average/Cold): 4.5 / 4.0 / 4.5

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 2.0

TCSPF-COM (Hot/Average/Cold): 8.349 / 9.583 / 15.061

TCSPF-RES (Hot/Average/Cold): 6.369 / 5.849 / 6.136

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1106mm

Outdoor unit depth : 306mm

Outdoor unit height : 642mm

Outdoor unit width: 816mm

Warranty

Parts and labour: 5 years

AS60QEEHRA-SET
Quartz Plus Hi Wall, 6kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 6kW

Heating capacity (kW): 7kW

Consumption

COP: 4.05 / 4.13

EER: 4.03 / 4.01

Energy rating (cooling): 6.00

Energy rating (heating): 7.00

HSPF-RES (Hot/Average/Cold): 4.664 / 4.228 / 3.712

HSPFCOM (Hot/Average/Cold): 4.662 / 4.394 / 3.961

Star-Cool (Hot/Average/Cold): 4.5 / 4.0 / 4.5

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 2.0

TCSPF-COM (Hot/Average/Cold): 8.349 / 9.583 / 15.061

TCSPF-RES (Hot/Average/Cold): 6.369 / 5.849 / 6.136

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.3kg

Self diagnostics:

Sleep mode:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS60QEEHRA

Indoor unit weight: 15.5kg

Outdoor unit model: 1U60KAEFRA

Outdoor unit weight: 37.5kg

Pipe length maximum: 25m

Pipe size gas: 12.70mm

Pipe size liquid: 6.35mm

Performance

Airflow: 345L/S

DC inverter:

Indoor sound pressure SPL: 46-27dBA

Outdoor sound power SWL: 67dBA

Outdoor sound pressure SPL: 54dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: -15°C to +24°C

Power requirements

Power supply: 1/220-240/50

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1106mm

Outdoor unit depth : 306mm

Outdoor unit height : 642mm

Outdoor unit width: 816mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Plus Hi Wall, 7.1kW

AS71QEFHRA-SET

AS71QEFHRA-SET, hero
Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.72

EER: 3.70

Energy rating (cooling): 7.10

Energy rating (heating): 8.00

HSPF-RES (Hot/Average/Cold): 4.832/4.240/3.723

HSPFCOM (Hot/Average/Cold): 4.848/4.492/4.037

Star-Cool (Hot/Average/Cold): 4.5/4.0/4.0

Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 7.548/8.531/11.614

TCSPF-RES (Hot/Average/Cold): 6.065/5.553/5.878

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1106mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

AS71QEFHRA-SET
Quartz Plus Hi Wall, 7.1kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.72

EER: 3.70

Energy rating (cooling): 7.10

Energy rating (heating): 8.00

HSPF-RES (Hot/Average/Cold): 4.832/4.240/3.723

HSPFCOM (Hot/Average/Cold): 4.848/4.492/4.037

Star-Cool (Hot/Average/Cold): 4.5/4.0/4.0

Star-Heat (Hot/Average/Cold): 3.0/2.5/2.0

TCSPF-COM (Hot/Average/Cold): 7.548/8.531/11.614

TCSPF-RES (Hot/Average/Cold): 6.065/5.553/5.878

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.42kg

Self diagnostics:

Sleep mode:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS71QEFHRA

Indoor unit weight: 15.5kg

Outdoor unit model: 1U71WAFFRA

Outdoor unit weight: 44kg

Pipe length maximum: 25m

Pipe size gas: 12.70mm

Pipe size liquid: 6.35mm

Performance

Airflow: 310L/S

DC inverter:

Indoor sound pressure SPL: 46-27dBA

Outdoor sound power SWL: 69dBA

Outdoor sound pressure SPL: 54dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15°C to +24°C

Power requirements

Power phase: Single phase

Power supply: 1/220-240/50

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 240mm

Indoor unit height: 345mm

Indoor unit width: 1106mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Quartz Plus Hi Wall, 8.0kW

AS80QFFHRA-SET

AS80QFFHRA-SET, hero
Capacity

Cooling capacity (kW): 8kW

Heating capacity (kW): 9kW

Consumption

COP: 3.93

EER: 3.81

Energy rating (cooling): 8.00

Energy rating (heating): 9.00

HSPF-RES (Hot/Average/Cold): 5.271/4.550/3.873

HSPFCOM (Hot/Average/Cold): 5.289/4.854/4.258

Star-Cool (Hot/Average/Cold): 3.5 / 3.5 / 3.5

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.0

TCSPF-COM (Hot/Average/Cold): 5.749/5.921/6.364

TCSPF-RES (Hot/Average/Cold): 5.367/5.084/5.341

Product dimensions

Indoor unit depth : 275mm

Indoor unit height: 365mm

Indoor unit width: 1316mm

Outdoor unit depth : 370mm

Outdoor unit height : 815mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

AS80QFFHRA-SET
Quartz Plus Hi Wall, 8.0kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HJ

Capacity

Cooling capacity (kW): 8kW

Heating capacity (kW): 9kW

Consumption

COP: 3.93

EER: 3.81

Energy rating (cooling): 8.00

Energy rating (heating): 9.00

HSPF-RES (Hot/Average/Cold): 5.271/4.550/3.873

HSPFCOM (Hot/Average/Cold): 5.289/4.854/4.258

Star-Cool (Hot/Average/Cold): 3.5 / 3.5 / 3.5

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.0

TCSPF-COM (Hot/Average/Cold): 5.749/5.921/6.364

TCSPF-RES (Hot/Average/Cold): 5.367/5.084/5.341

Features

24 Hour timer:

Anti-bacterial silver ion coating:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Compressor type: Inverter twin rotary

Concealed LED display:

DRED (Demand Response) ready: Optional HPRT-DRA001

Dry mode:

Electronic expansion device:

Google Home:

Heat pump:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

Long distance air supply : 20

MEPS approved:

Motor type: DC motor

Power mode:

Refrigerant factory charge: 1.62kg

Self diagnostics:

Sleep mode:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Wi-Fi controller compatible:

Installation

Indoor unit model: AS80QFFHRA

Indoor unit weight: 21kg

Outdoor unit model: 1U80QAFFRA

Outdoor unit weight: 52kg

Pipe length maximum: 25m

Pipe size gas: 15.88 (⅝)

Pipe size liquid: 6.35 (¼)

Performance

Airflow: 380/332/285/230

DC inverter:

Indoor sound pressure SPL: 48-30dBA

Outdoor sound power SWL: 70dBA

Outdoor sound pressure SPL: 57dBA

R32 Refrigerant:

Self cleaning evaporator:

Working temperature cooling: -10°C to +46°C

Working temperature heating: -15°C to +24°C

Power requirements

AMP draw: 16.5A

Power phase: Single phase

Power supply: 1/220-240/50

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 275mm

Indoor unit height: 365mm

Indoor unit width: 1316mm

Outdoor unit depth : 370mm

Outdoor unit height : 815mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation
