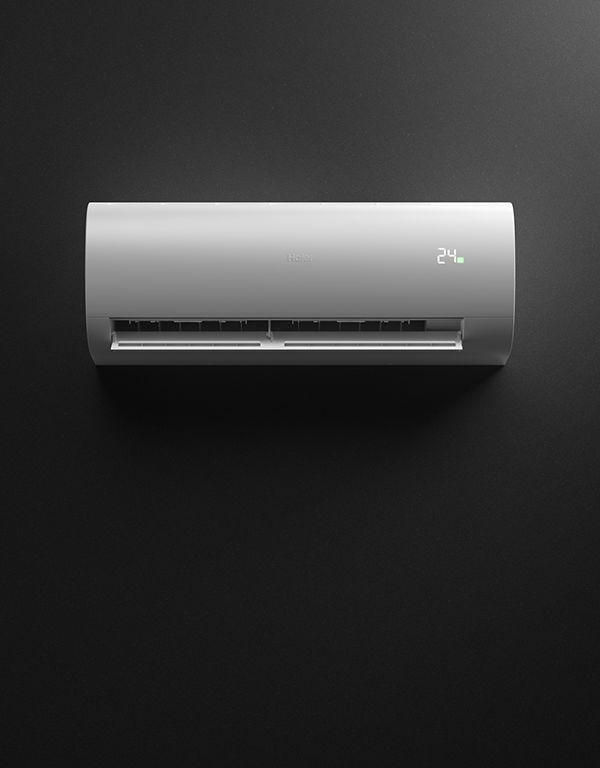

Pinnacle (Heating and Cooling), hero

Pinnacle (Heating and Cooling)

Wall Mounted Split System

Get a quote

Product Set

Outdoor Unit
Indoor Unit
Controller

Features

arrow_split

INTELLIGENT AIR

Intelligent Air directs cool air upwards and warm air downwards, for maximum efficiency whether you’re heating or cooling.

mode_cool

TURBO COOLING

The Turbo program boosts the motor to work at a higher frequency, so you can enjoy a cool or warm room within a much shorter time.

airware

FAR-REACHING AIR FLOW

With innovative fan and motor technology, air from your Pinnacle reaches long distances – as much as 20 metres in the 7kW model.

volume_mute

WHISPER QUIET

Enjoy consistent temperature as well as peace and quiet. Our wall mounted units are very quiet and can operate from as low as 21 decibels.

Technologies

UV Protect

UV Protect

UV Protect helps to deliver clean air to your room using Health mode, with built-in LED UV lights that kill airborne pathogens, delivering clean air to your room.*

*Independent testing has found 91.47% elimination of the H3N2 virus in a 30m3 closed room and 82.78% of Staphylococcus Aureus bacteria in a 10m3 closed room, for two hours on Health mode at the highest fan speed

Coanda Plus Airflow

Coanda Plus Airflow

Coanda Plus Airflow technology sends warm or cool air further, as far as 20 metres in the 7kW Pinnacle air conditioner model. From ceiling to floor and to every corner of the room, air circulates evenly.

Self-Clean

Self-Clean

The Self-Clean function freezes the indoor and outdoor coil with moisture in the air and flushes away dirt through melting, helping to ensure healthy airflow from your air conditioning.

WiFi

WiFi

We believe in integrating smart technology into the heart of every home. The SmartHQ™ app puts control in your hands and means you can control your air-conditioning from anywhere at anytime. Our products are also compatible with Google Home and Amazon Alexa.

Specifications

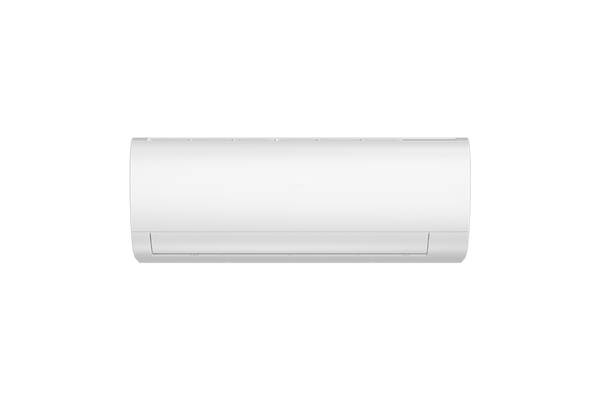

Pinnacle Hi Wall, 2.5kW

AS26PBDHRA-SET

AS26PBDHRA-SET, hero
Capacity

Cooling capacity (kW): 2.5kW

Heating capacity (kW): 3kW

Consumption

COP: 4.41

EER: 4.46

HSPF-RES (Hot/Average/Cold): 5.457 / 4.505 / 3.788

HSPFCOM (Hot/Average/Cold): 5.493 / 4.917 / 4.263

Star-Cool (Hot/Average/Cold): 4.5 / 4.0 / 4.0

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.0

TCSPF-COM (Hot/Average/Cold): 6.538 / 6.614 / 7.046

TCSPF-RES (Hot/Average/Cold): 6.068 / 5.519 / 5.674

Product dimensions

Indoor unit depth : 200mm

Indoor unit height: 292mm

Indoor unit width: 805mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

AS26PBDHRA-SET
Pinnacle Hi Wall, 2.5kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: wireless

Capacity

Cooling capacity (kW): 2.5kW

Heating capacity (kW): 3kW

Consumption

COP: 4.41

EER: 4.46

HSPF-RES (Hot/Average/Cold): 5.457 / 4.505 / 3.788

HSPFCOM (Hot/Average/Cold): 5.493 / 4.917 / 4.263

Star-Cool (Hot/Average/Cold): 4.5 / 4.0 / 4.0

Star-Heat (Hot/Average/Cold): 3.5 / 3.0 / 2.0

TCSPF-COM (Hot/Average/Cold): 6.538 / 6.614 / 7.046

TCSPF-RES (Hot/Average/Cold): 6.068 / 5.519 / 5.674

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Concealed LED display:

DRED (Demand Response) ready:

Dry mode:

Electronic expansion device:

Google Home:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

Long distance air supply : 12

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 0.8kg

Self diagnostics:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Installation

Indoor unit model: AS26PBDHRA

Indoor unit weight: 8.7kg

Outdoor unit model: 1U26MADFRA

Outdoor unit weight: 29.7kg

Pipe length maximum: 15m

Pipe size gas: Pipe size 9.52mm

Pipe size liquid: Pipe size 6.35mm

Performance

Airflow: 155/133/97 L/S

DC inverter:

Indoor sound pressure SPL: 40 / 36 / 32 / 21dBA

Outdoor sound power SWL: 59dBA

Outdoor sound pressure SPL: 51dBA

R32 Refrigerant:

Working temperature cooling: -10°C to +46°C

Working temperature heating: ‍-15℃ ~ 24℃

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 230V

Product dimensions

Indoor unit depth : 200mm

Indoor unit height: 292mm

Indoor unit width: 805mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Pinnacle Hi Wall, 3.5kW

AS35PBDHRA-SET

AS35PBDHRA-SET, hero
Capacity

Cooling capacity (kW): 3.5kW

Heating capacity (kW): 3.7kW

Consumption

COP: 3.7

EER: 3.8

HSPF-RES (Hot/Average/Cold): 4.816 / 4.046 / 3.452

HSPFCOM (Hot/Average/Cold): 4.841 / 4.379 / 3.844

Star-Cool (Hot/Average/Cold): 3.5 / 3.5 / 3.5

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 1.5

TCSPF-COM (Hot/Average/Cold): 5.941 / 6.105 / 6.561

TCSPF-RES (Hot/Average/Cold): 5.494 / 5.053 / 5.268

Product dimensions

Indoor unit depth : 200mm

Indoor unit height: 292mm

Indoor unit width: 805mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

AS35PBDHRA-SET
Pinnacle Hi Wall, 3.5kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: wireless

Capacity

Cooling capacity (kW): 3.5kW

Heating capacity (kW): 3.7kW

Consumption

COP: 3.7

EER: 3.8

HSPF-RES (Hot/Average/Cold): 4.816 / 4.046 / 3.452

HSPFCOM (Hot/Average/Cold): 4.841 / 4.379 / 3.844

Star-Cool (Hot/Average/Cold): 3.5 / 3.5 / 3.5

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 1.5

TCSPF-COM (Hot/Average/Cold): 5.941 / 6.105 / 6.561

TCSPF-RES (Hot/Average/Cold): 5.494 / 5.053 / 5.268

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Concealed LED display:

DRED (Demand Response) ready:

Dry mode:

Electronic expansion device:

Google Home:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

Long distance air supply : 12

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 0.84kg

Self diagnostics:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Installation

Indoor unit model: AS35PBDHRA

Indoor unit weight: 8.7kg

Outdoor unit model: 1U35MADFRA

Outdoor unit weight: 30kg

Pipe length maximum: 15m

Pipe size gas: Pipe size 9.52mm

Pipe size liquid: Pipe size 6.35mm

Performance

Airflow: 180/152/125 L/S

DC inverter:

Indoor sound pressure SPL: 40 / 36 / 32 / 22dBA

Outdoor sound power SWL: 63dBA

Outdoor sound pressure SPL: 53dBA

R32 Refrigerant:

Working temperature cooling: ‍-10°C to +46°C

Working temperature heating: ‍-15℃ ~ 24℃

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 230V

Product dimensions

Indoor unit depth : 200mm

Indoor unit height: 292mm

Indoor unit width: 805mm

Outdoor unit depth : 275mm

Outdoor unit height : 553mm

Outdoor unit width: 800mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Pinnacle Hi Wall, 5kW

AS53PDDHRA-SET

AS53PDDHRA-SET, hero
Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 5.5kW

Consumption

COP: 3.93

EER: 3.85

HSPF-RES (Hot/Average/Cold): 4.667 / 4.129 / 3.595

HSPFCOM (Hot/Average/Cold): 4.675 / 4.350 / 3.889

Star-Cool (Hot/Average/Cold): 3.5 / 3.0 / 3.5

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 2.0

TCSPF-COM (Hot/Average/Cold): 5.568 / 5.687 / 6.080

TCSPF-RES (Hot/Average/Cold): 5.212 / 4.908 / 5.108

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 320mm

Indoor unit width: 970mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

AS53PDDHRA-SET
Pinnacle Hi Wall, 5kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: wireless

Capacity

Cooling capacity (kW): 5kW

Heating capacity (kW): 5.5kW

Consumption

COP: 3.93

EER: 3.85

HSPF-RES (Hot/Average/Cold): 4.667 / 4.129 / 3.595

HSPFCOM (Hot/Average/Cold): 4.675 / 4.350 / 3.889

Star-Cool (Hot/Average/Cold): 3.5 / 3.0 / 3.5

Star-Heat (Hot/Average/Cold): 3.0 / 2.5 / 2.0

TCSPF-COM (Hot/Average/Cold): 5.568 / 5.687 / 6.080

TCSPF-RES (Hot/Average/Cold): 5.212 / 4.908 / 5.108

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Concealed LED display:

DRED (Demand Response) ready:

Dry mode:

Electronic expansion device:

Google Home:

Infrared remote control:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

Long distance air supply : 15

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 1.02kg

Self diagnostics:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Installation

Indoor unit model: AS53PDDHRA

Indoor unit weight: 11.6kg

Outdoor unit model: 1U53WADFRA

Outdoor unit weight: 43.2kg

Pipe length maximum: 20m

Pipe size gas: Pipe size 12.7mm

Pipe size liquid: Pipe size 6.35mm

Performance

Airflow: 260/228/195 L/S

DC inverter:

Indoor sound pressure SPL: 47 / 43 / 37 / 33dBA

Outdoor sound power SWL: 66dBA

Outdoor sound pressure SPL: 47dBA

R32 Refrigerant:

Working temperature cooling: -10°C to +46°C

Working temperature heating: ‍-15℃ ~ 24℃

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 230V

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 320mm

Indoor unit width: 970mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Pinnacle Hi Wall, 7kW

AS71PDDHRA-SET

AS71PDDHRA-SET, hero
Capacity

Cooling capacity (kW): 7kW

Heating capacity (kW): 7.6kW

Consumption

COP: 3.35

EER: 3.3

HSPF-RES (Hot/Average/Cold): 4.090 / 3.627 / 3.196

HSPFCOM (Hot/Average/Cold): 4.097 / 3.818 / 3.445

Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5

Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5

TCSPF-COM (Hot/Average/Cold): 4.706 / 4.816 / 5.148

TCSPF-RES (Hot/Average/Cold): 4.419 / 4.196 / 4.367

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 320mm

Indoor unit width: 970mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

AS71PDDHRA-SET
Pinnacle Hi Wall, 7kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control:

Standard controller: YR-HE

Capacity

Cooling capacity (kW): 7kW

Heating capacity (kW): 7.6kW

Consumption

COP: 3.35

EER: 3.3

HSPF-RES (Hot/Average/Cold): 4.090 / 3.627 / 3.196

HSPFCOM (Hot/Average/Cold): 4.097 / 3.818 / 3.445

Star-Cool (Hot/Average/Cold): 2.5 / 2.5 / 2.5

Star-Heat (Hot/Average/Cold): 2.5 / 2.0 / 1.5

TCSPF-COM (Hot/Average/Cold): 4.706 / 4.816 / 5.148

TCSPF-RES (Hot/Average/Cold): 4.419 / 4.196 / 4.367

Features

24 Hour timer:

56°C Steri-clean:

Anti-bacterial silver ion coating:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Built-in Wi-Fi smart control:

Concealed LED display:

Dry mode:

Electronic expansion device:

Google Home:

Intelligent air:

Internal and external heat exchanger self-cleaning:

Inverter controlled compressor:

Long distance air supply : 18

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 1.1kg

Self diagnostics:

UV Protect:

Voice control via Google Home or Amazon Alexa:

Installation

Indoor unit model: AS71PDDHRA

Indoor unit weight: 11.6kg

Outdoor unit model: 1U71WADFRA

Outdoor unit weight: 43.5kg

Pipe length maximum: 20m

Pipe size gas: Pipe size 12.7mm

Pipe size liquid: Pipe size 6.35mm

Performance

Airflow: 305/260/220 L/S

DC inverter:

Indoor sound pressure SPL: 48 / 44 / 38 / 33dBA

Outdoor sound power SWL: 67dBA

Outdoor sound pressure SPL: 48dBA

R32 Refrigerant:

Working temperature cooling: -10°C to +46°C

Working temperature heating: ‍-15℃ ~ 24℃

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 230V

Product dimensions

Indoor unit depth : 220mm

Indoor unit height: 320mm

Indoor unit width: 970mm

Outdoor unit depth : 340mm

Outdoor unit height : 705mm

Outdoor unit width: 890mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation
