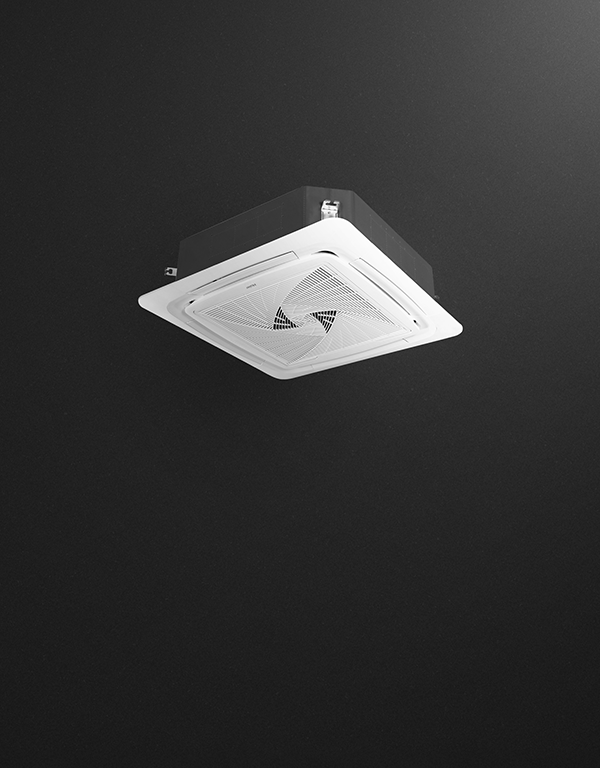

Round Way Cassette (R32), hero

Round Way Cassette (R32)

Cassette Systems: Smart Power

Get a quote

Product Set

Outdoor Unit
Indoor Unit
Indoor Unit

Features

thermometer

Round Way Design

The unique round way air outlet supplies airflow in all directions for optimal temperature distribution throughout your space.

air

Fresh Air Inlet

Fresh air knockout is incorporated in the chassis allowing introduction of fresh air at a rate of up to 20% of airflow without compromising cooling capacity.

wifi

Control from Anywhere

Installing the optional Wi-Fi accessory lets you control your air conditioning from your phone with the SmartHQ™ app, or use voice control with a smart home device.

volume_mute

Quiet Operation

A helix fan blade and diffuser are designed for quiet operation.

Technologies

Smart Power

Smart Power

Haier’s Smart Power air conditioning systems provide an effective heating and cooling solution. The system is made up of: an outdoor unit in a suitable location, an indoor cassette unit to deliver airflow, and a controller for the air conditioning system.

DC Inverter Technology

DC Inverter Technology

With 3D Direct Current (DC) inverter technology, Super Match air conditioning units are designed to be more energy efficient that a standard AC motor, while delivering rapid heating and cooling as needed.

Anti-corrosion coating

Anti-corrosion coating

The Blue Fin coating on the indoor and outdoor coil is hydrophilic for quick water drainage and resistance against corrosion.

Specifications

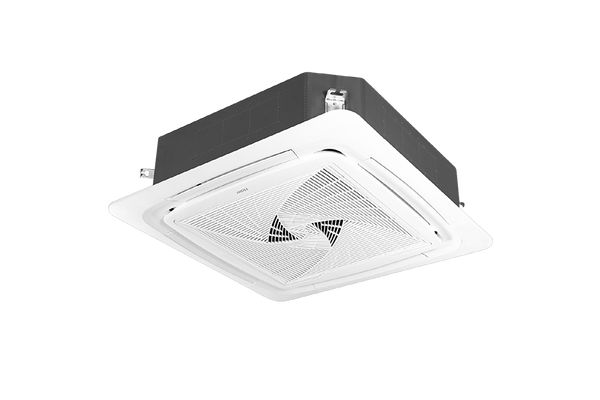

Round Way Cassette R32, 7.1kW

ABH071HS5FA-SET

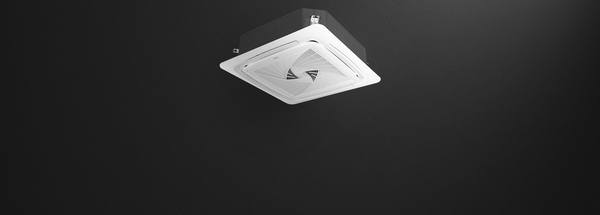

ABH071HS5FA-SET, hero
Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.81

EER: 3.43

HSPF-RES (Hot/Average/Cold): 4.330/3.927/3.448

HSPFCOM (Hot/Average/Cold): 4.326/4.078/3.679

Star-Cool (Hot/Average/Cold): 2.5/2.0/1.5

Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0

TCSPF-COM (Hot/Average/Cold): 4.41/4.37/4.6

TCSPF-RES (Hot/Average/Cold): 4.140/3.762/3.797

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 246mm

Indoor unit width: 840mm

Net weight: 31kg

Outdoor unit depth : 372mm

Outdoor unit height : 760mm

Outdoor unit width: 920mm

Warranty

Parts and labour: 5 years

ABH071HS5FA-SET
Round Way Cassette R32, 7.1kW

Accessories (included)

Central controller: Optional

IR Controller:

Standard controller: YR-HQS01

Capacity

Cooling capacity (kW): 7.1kW

Heating capacity (kW): 8kW

Consumption

COP: 3.81

EER: 3.43

HSPF-RES (Hot/Average/Cold): 4.330/3.927/3.448

HSPFCOM (Hot/Average/Cold): 4.326/4.078/3.679

Star-Cool (Hot/Average/Cold): 2.5/2.0/1.5

Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0

TCSPF-COM (Hot/Average/Cold): 4.41/4.37/4.6

TCSPF-RES (Hot/Average/Cold): 4.140/3.762/3.797

Features

360° airflow:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Compressor type: Twin rotary

Concealed LED display:

Condensate pump:

Electronic expansion device:

Fresh air connection:

Infrared remote control:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 1.7kg

Standard panel: PB-950KB

Installation

Indoor unit model: ABH071H5ERG

Indoor unit weight: 31kg

Outdoor unit model: 1U71S2SS5FA

Outdoor unit weight: 60kg

Pipe length maximum: 50m

Pipe size gas: 15.9mm

Pipe size liquid: 9.52mm

Performance

Airflow: 445/415/375/335

Indoor sound pressure SPL: 35-26dBA

Outdoor sound power SWL: 64dBA

Outdoor sound pressure SPL: 62dBA

R32 Refrigerant:

Sound pressure: 47dBA

Working temperature cooling: -20°C to +24°C

Working temperature heating: ‍-15℃ to +50℃

Power requirements

AMP draw: 16A

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 246mm

Indoor unit width: 840mm

Net weight: 31kg

Outdoor unit depth : 372mm

Outdoor unit height : 760mm

Outdoor unit width: 920mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Round Way Cassette R32, 10kW

ABH105KN5FA-SET

ABH105KN5FA-SET, hero
Capacity

Cooling capacity (kW): 10kW

Heating capacity (kW): 11.5kW

Consumption

COP: 3.54

EER: 3.16

HSPF-RES (Hot/Average/Cold): 4.436/3.956/3.528

HSPFCOM (Hot/Average/Cold): 4.447/4.16/3.784

Star-Cool (Hot/Average/Cold): 2.5/2.0/2.5

Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0

TCSPF-COM (Hot/Average/Cold): 4.598/4.668/4.979

TCSPF-RES (Hot/Average/Cold): 4.284/3.953/4.083

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 288mm

Indoor unit width: 840mm

Outdoor unit depth : 370mm

Outdoor unit height : 965mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

ABH105KN5FA-SET
Round Way Cassette R32, 10kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control: HI-WB101DEI

Standard controller: YR-HQS01

Capacity

Cooling capacity (kW): 10kW

Heating capacity (kW): 11.5kW

Consumption

COP: 3.54

EER: 3.16

HSPF-RES (Hot/Average/Cold): 4.436/3.956/3.528

HSPFCOM (Hot/Average/Cold): 4.447/4.16/3.784

Star-Cool (Hot/Average/Cold): 2.5/2.0/2.5

Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0

TCSPF-COM (Hot/Average/Cold): 4.598/4.668/4.979

TCSPF-RES (Hot/Average/Cold): 4.284/3.953/4.083

Features

360° airflow:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Compressor type: Twin rotary

Concealed LED display:

Condensate pump:

Electronic expansion device:

Fresh air connection:

Infrared remote control:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 2.3kg

Standard panel: PB-950KB

Installation

Indoor unit model: ABH105K5ERG

Indoor unit weight: 32kg

Outdoor unit model: 1U100S2SN5FA

Outdoor unit weight: 83kg

Pipe length maximum: 50m

Pipe size gas: 15.9mm

Pipe size liquid: 9.52mm

Performance

Airflow: 490/105/335/295

Indoor sound pressure SPL: 45-34dBA

Outdoor sound power SWL: 68dBA

Outdoor sound pressure SPL: 52dBA

R32 Refrigerant:

Working temperature cooling: -20°C to +24°C

Working temperature heating: ‍-15℃ to +50℃

Power requirements

AMP draw: 20A

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 288mm

Indoor unit width: 840mm

Outdoor unit depth : 370mm

Outdoor unit height : 965mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Round Way Cassette R32, 12kW

ABH125KP5FA-SET

ABH125KP5FA-SET, hero
Capacity

Cooling capacity (kW): 12kW

Heating capacity (kW): 13kW

Consumption

COP: 3.25

EER: 3.16

HSPF-RES (Hot/Average/Cold): 3.337/3.105/2.800

HSPFCOM (Hot/Average/Cold): 3.325/3.182/2.849

Star-Cool (Hot/Average/Cold): 1.5/1.5/1.0

Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0

TCSPF-COM (Hot/Average/Cold): 4.36/4.404/4.679

TCSPF-RES (Hot/Average/Cold): 4.088/3.806/3.915

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 288mm

Indoor unit width: 840mm

Outdoor unit depth : 370mm

Outdoor unit height : 1350mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

ABH125KP5FA-SET
Round Way Cassette R32, 12kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control: HI-WB101DEI

Standard controller: YR-HQS01

Capacity

Cooling capacity (kW): 12kW

Heating capacity (kW): 13kW

Consumption

COP: 3.25

EER: 3.16

HSPF-RES (Hot/Average/Cold): 3.337/3.105/2.800

HSPFCOM (Hot/Average/Cold): 3.325/3.182/2.849

Star-Cool (Hot/Average/Cold): 1.5/1.5/1.0

Star-Heat (Hot/Average/Cold): 2.5/2.0/2.0

TCSPF-COM (Hot/Average/Cold): 4.36/4.404/4.679

TCSPF-RES (Hot/Average/Cold): 4.088/3.806/3.915

Features

360° airflow:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Compressor type: Twin rotary

Concealed LED display:

Condensate pump:

Electronic expansion device:

Fresh air connection:

Infrared remote control:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 2.9kg

Standard panel: PB-950KB

Installation

Indoor unit model: ABH125K5ERG

Indoor unit weight: 32kg

Outdoor unit model: 1U125S2SP5FA

Outdoor unit weight: 100kg

Pipe length maximum: 75m

Pipe size gas: 15.9mm

Pipe size liquid: 9.52mm

Performance

Airflow: 530/435/375/295

Indoor sound pressure SPL: 47-34dBA

Outdoor sound power SWL: 69dBA

Outdoor sound pressure SPL: 52dBA

R32 Refrigerant:

Working temperature cooling: -20°C to +24°C

Working temperature heating: -10°C to +50°C

Power requirements

AMP draw: 26A

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 288mm

Indoor unit width: 840mm

Outdoor unit depth : 370mm

Outdoor unit height : 1350mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation

Round Way Cassette R32, 14kW

AB140S5SR1FA-SET

AB140S5SR1FA-SET, hero
Capacity

Cooling capacity (kW): 14kW

Heating capacity (kW): 14.5kW

Consumption

COP: 3.58

EER: 3.42

HSPF-RES (Hot/Average/Cold): 3.975/3.681/3.337

HSPFCOM (Hot/Average/Cold): 3.969/3.787/3.497

Star-Cool (Hot/Average/Cold): 2.5/2.5/2.5

Star-Heat (Hot/Average/Cold): 2.0/2.0/1.5

TCSPF-COM (Hot/Average/Cold): 4.639/4.672/4.955

TCSPF-RES (Hot/Average/Cold): 4.358/4.056/4.161

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 288mm

Indoor unit width: 840mm

Outdoor unit depth : 370mm

Outdoor unit height : 1350mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

AB140S5SR1FA-SET
Round Way Cassette R32, 14kW

Accessories (included)

Central controller: Optional

IR Controller:

SmartHQ WiFi control: HI-WB101DEI

Standard controller: YR-HQS01

Capacity

Cooling capacity (kW): 14kW

Heating capacity (kW): 14.5kW

Consumption

COP: 3.58

EER: 3.42

HSPF-RES (Hot/Average/Cold): 3.975/3.681/3.337

HSPFCOM (Hot/Average/Cold): 3.969/3.787/3.497

Star-Cool (Hot/Average/Cold): 2.5/2.5/2.5

Star-Heat (Hot/Average/Cold): 2.0/2.0/1.5

TCSPF-COM (Hot/Average/Cold): 4.639/4.672/4.955

TCSPF-RES (Hot/Average/Cold): 4.358/4.056/4.161

Features

360° airflow:

Auto restart:

Auto swing-up and down:

Blue fin coils:

Compressor type: Twin rotary

Concealed LED display:

Condensate pump:

DRED (Demand Response) ready:

Electronic expansion device:

Fresh air connection:

Infrared remote control:

Inverter controlled compressor:

MEPS approved:

Motor type: DC motor

Refrigerant factory charge: 2.9kg

Standard panel: PB-950QB

Installation

Indoor unit model: AB140S5SR1FA

Indoor unit weight: 28kg

Maximum number indoor units: 1

Outdoor unit model: 1U140S2SP5FA

Outdoor unit weight: 105kg

Pipe length maximum: 70m

Pipe size gas: 19.05 (¾)

Pipe size liquid: 9.52 (⅜)

Performance

Airflow: 545/460/385

Indoor sound pressure SPL: 50/48/44dBA

Outdoor sound power SWL: 70dBA

Outdoor sound pressure SPL: 54dBA

R32 Refrigerant:

Working temperature cooling: ‍-15℃ to +50℃

Working temperature heating: -20°C to +24°C

Power requirements

Power phase: Single phase

Supply frequency: 50Hz

Supply voltage: 220-240V

Product dimensions

Indoor unit depth : 840mm

Indoor unit height: 288mm

Indoor unit width: 840mm

Outdoor unit depth : 370mm

Outdoor unit height : 1350mm

Outdoor unit width: 950mm

Warranty

Parts and labour: 5 years

Download resources

General

Installation
